DYMAT® KF

PVDF based, white or clear

Coveme’s PVDF based backsheet for 1500 VDC features a PVDF layer combined with a thicker inner PET layer.
This Coveme fluoro-based backsheet, dyMat® KL series, features a superior resistance to UV irradiation. The
clear version is employed in bifacial or standard modules in BIPV, utility, greenhouse, commercial installations,
and grid or off grid application.

PRODUCT NAME STRUCTURE: AIR SIDE /CELL SIDE THICKNESS IN MICRON Main Features
KF 285 PVDF/Pet/Coating 330 New Iec standard compliant
Clr KF 285 PVDF/Clear PET/ Primer or Coating 330 Clear Version

The polyester film inside dyMat® KL backsheets can be fully recycled and can be supplied with the polyester component(s) made of recycled PET (rPET).

ADDITIONAL UPGRADES
For each backsheets additional treatments are available to enhance the pv module performance

TYPE OF UPGRADE UPGRADE CODE
High humidity barrier +UV protection LDO
Super high reflectivity SHR
Black on cell side  LBK
Black high reflectivity BKHR

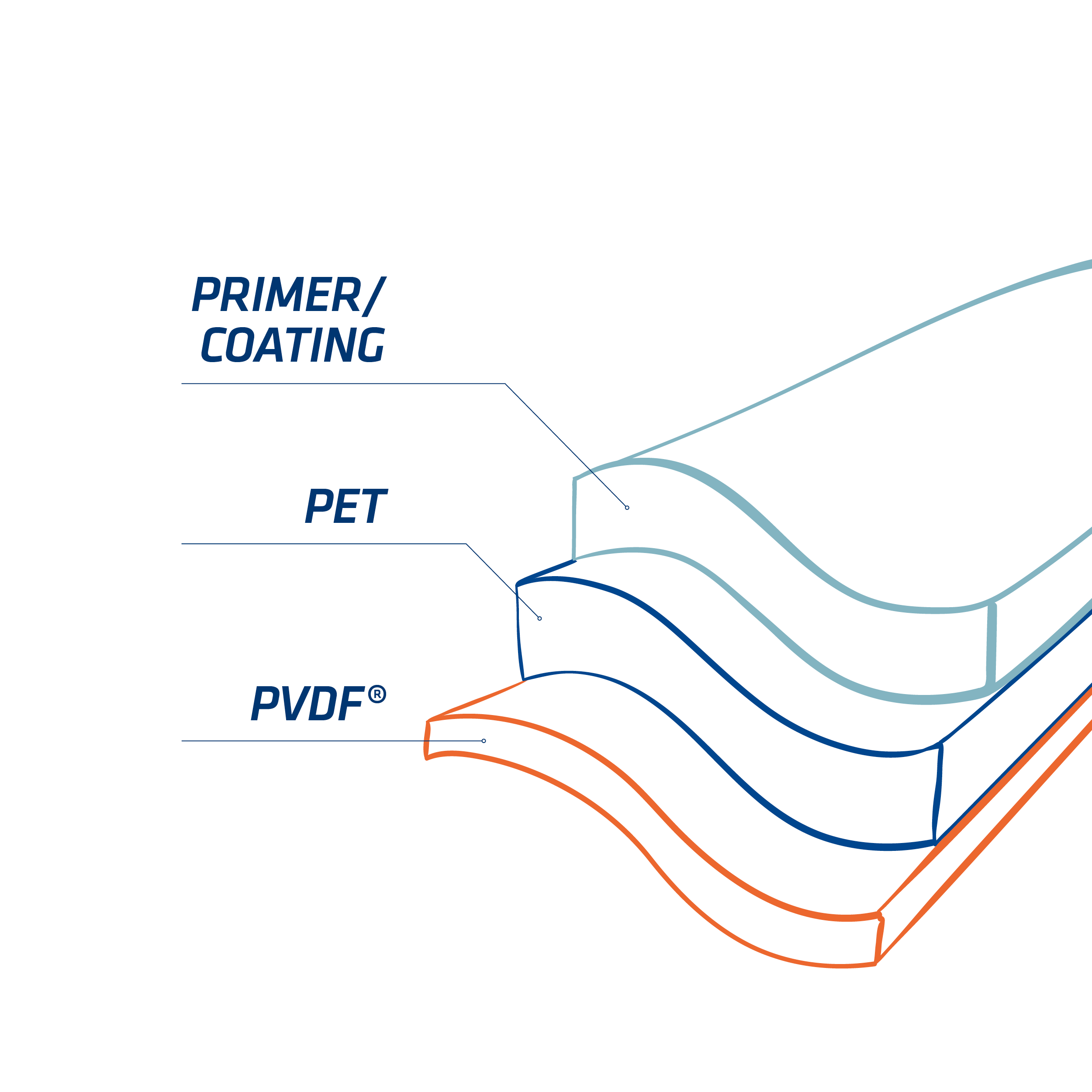

Clr KF 285
  • Clr KF 285

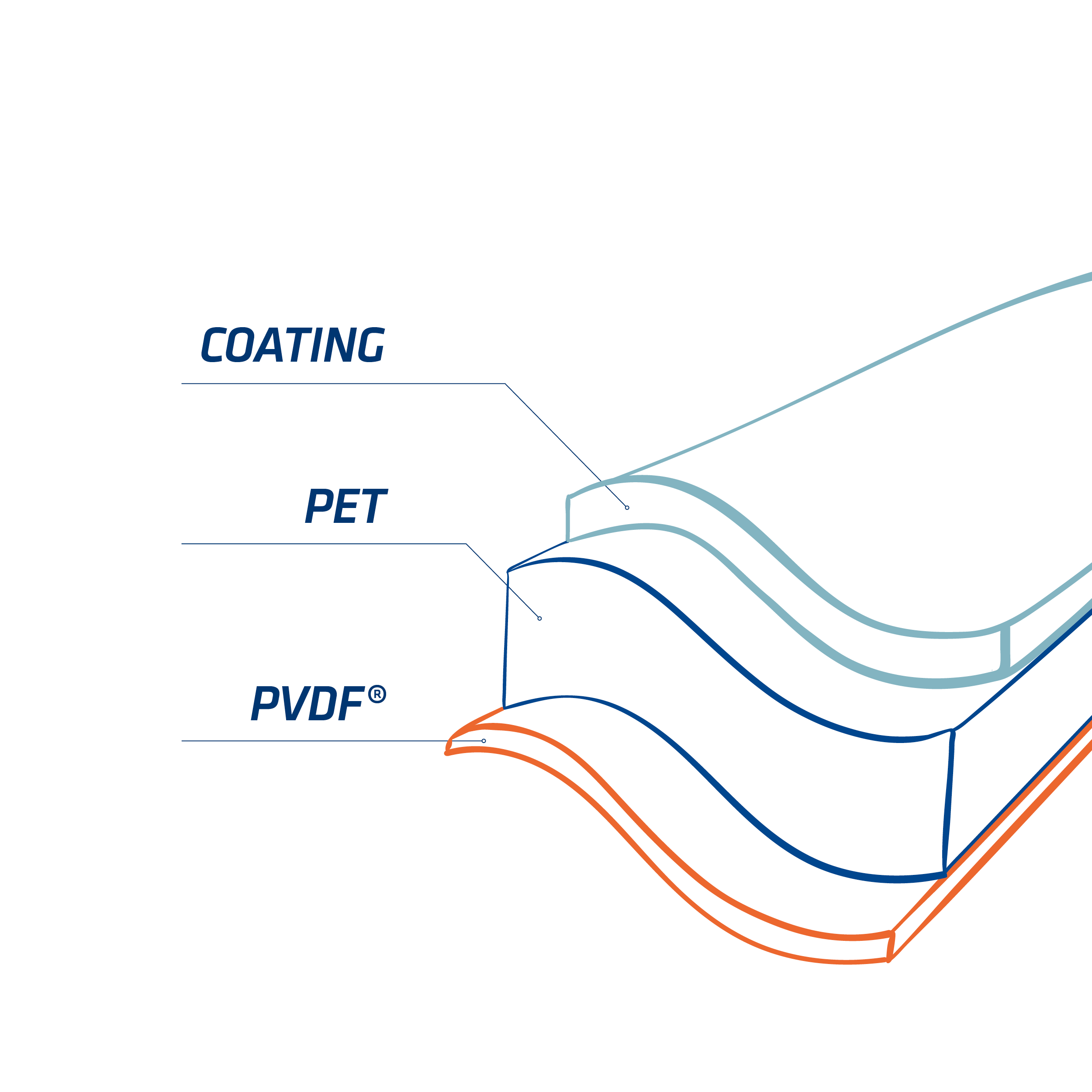

KF 285
  • KF 285

Notes and certifications

Cut sheets (sizes, drills etc.) according to customer’s specification
Shelf life: 2 years
All values stated are to be considered as typical values.
Coveme polyester film is 100% recyclable.
dyMat® KF is a Coveme registered trademark
I prodotti dyMat®KF are and UL registered and TÜV RHEINLAND and TÜV SUD certified.
