DYMAT® CLEAR FRONTSHEET

Transparent and extra thick

dyMat® transparent frontsheets are the ideal solution to be employed instead of glass in lightweight flexible photovoltaics. They combine the properties of a co-extruded polyester film with those of a special UV coating applied in a high-tech EB curing production process. dyMat® frontsheets have been specifically developed to guarantee an extra high UV and hydrolysis resistance together with outstanding anti-scratch and anti-abrasion properties. dyMat® Clr FS HDPYE CXG features a double layer pet for 1500VDC applications. It can be supplied with the UV coating in a matt anti-glare finish for output enhancement.

Business Unit
Brochure

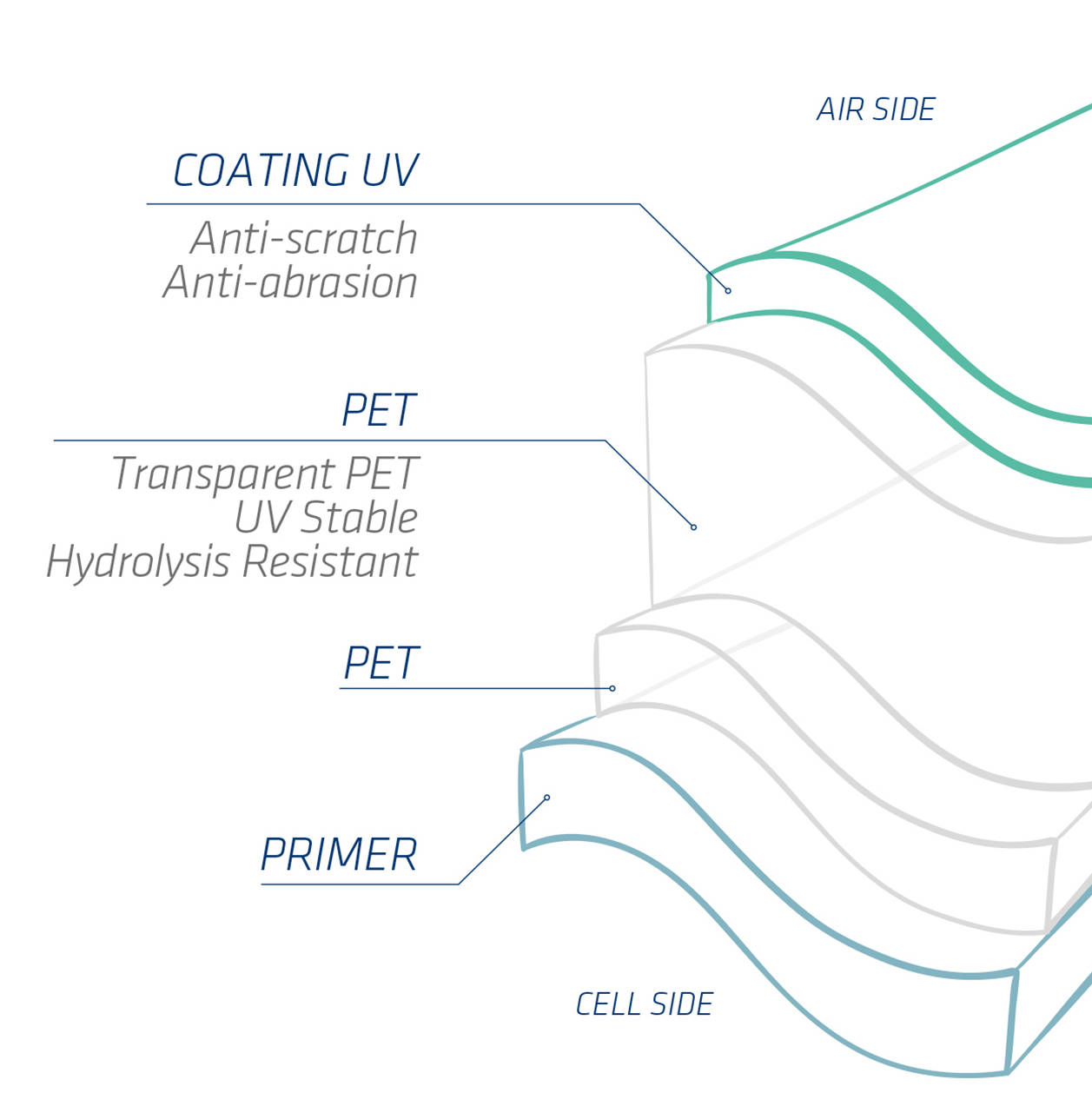

PRODUCT NAME STRUCTURE: AIR SIDE /CELL SIDE THICKNESS IN MICRON Main Features

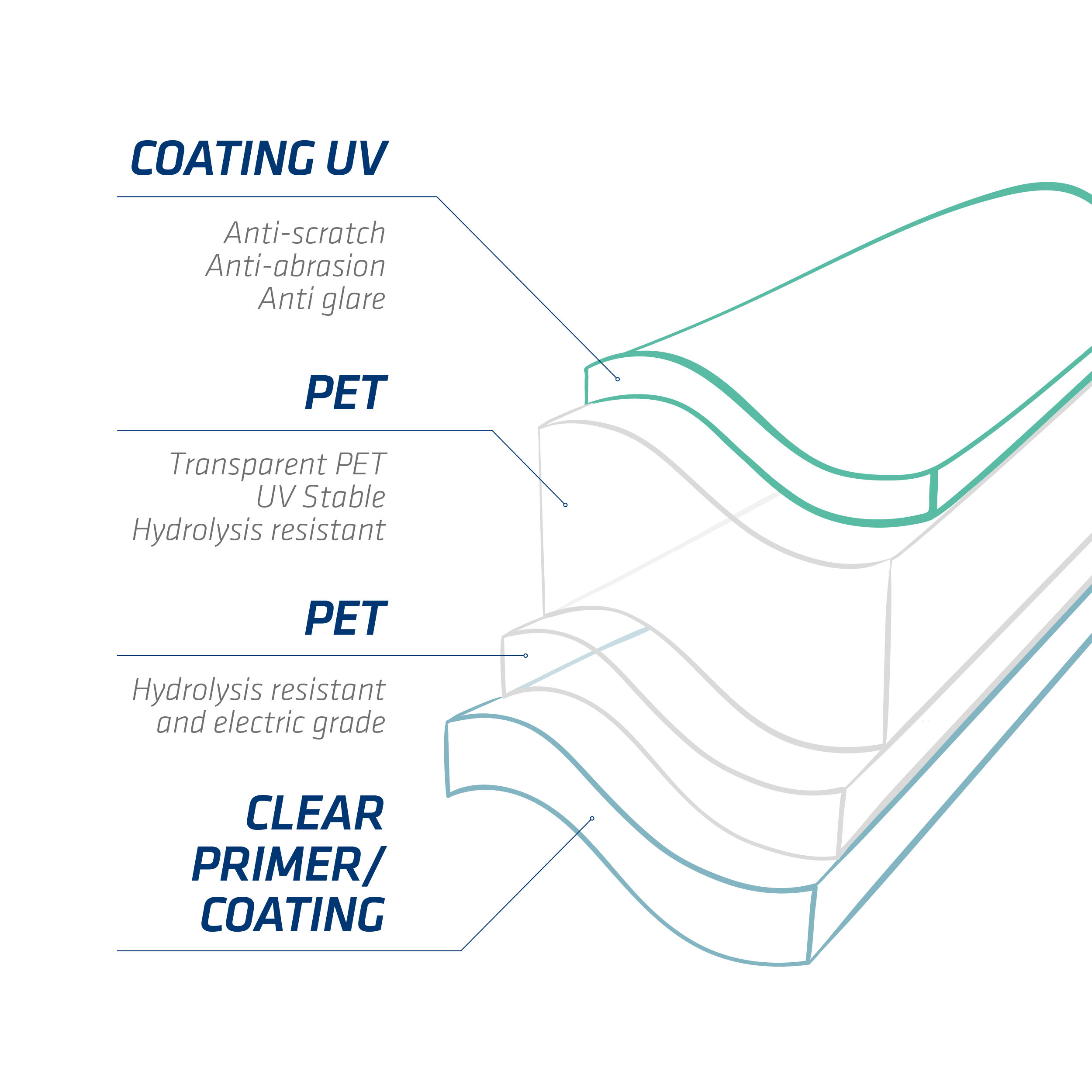

Clr FS HDPYE CXG Coating UV/Pet coex/Pet/Primer 10/125/175/50 Transparent and Extra thick

FEATURES
ANTI SCRATCH
ANTI ABRASION
UV STABLE
HYDROLYSIS RESISTANT
ANTI GLARE
ENGINEERED ADHESIVE
MATT FINISHING FOR HIGHER OUTPUT
EXTENDED LIFE TIME UP TO 30 YEARS

DYMAT CLEAR FRONTSHEET 1500 VDC
  • Clr FS HDPYE CXG

Notes and certifications

Other thicknesses on request
Cut sheets (sizes, drills etc.) according to customer’s specifications
Shelf life: 2 years
All values stated are to be considered as typical values.
Coveme polyester film is 100% recyclable
dyMat® is a Coveme registered trademark
dyMat® Clear Frontsheets products are UL registered and TÜV RHEINLAND and TÜV SUD certified.
