DYMAT® PYE CLEAR

Transparent Single layer

GREEN BLACKSHEET

A new generation of transparent high grade polyester backsheets to be employed as an alternative to glass in Bifacial modules or in other module types for installations where transparency is required (eg. greenhouses). The polymers, primer and adhesives specifically developed for these products provide an extra high resistance to UV and humidity. dyMat® Clr PYE Mono CX is a monolayer product for 1000 VDC with UV protection all across the whole thickness thanks to its bulk technology.

Clear Products Brochure
FULL PRODUCT BROCHURE

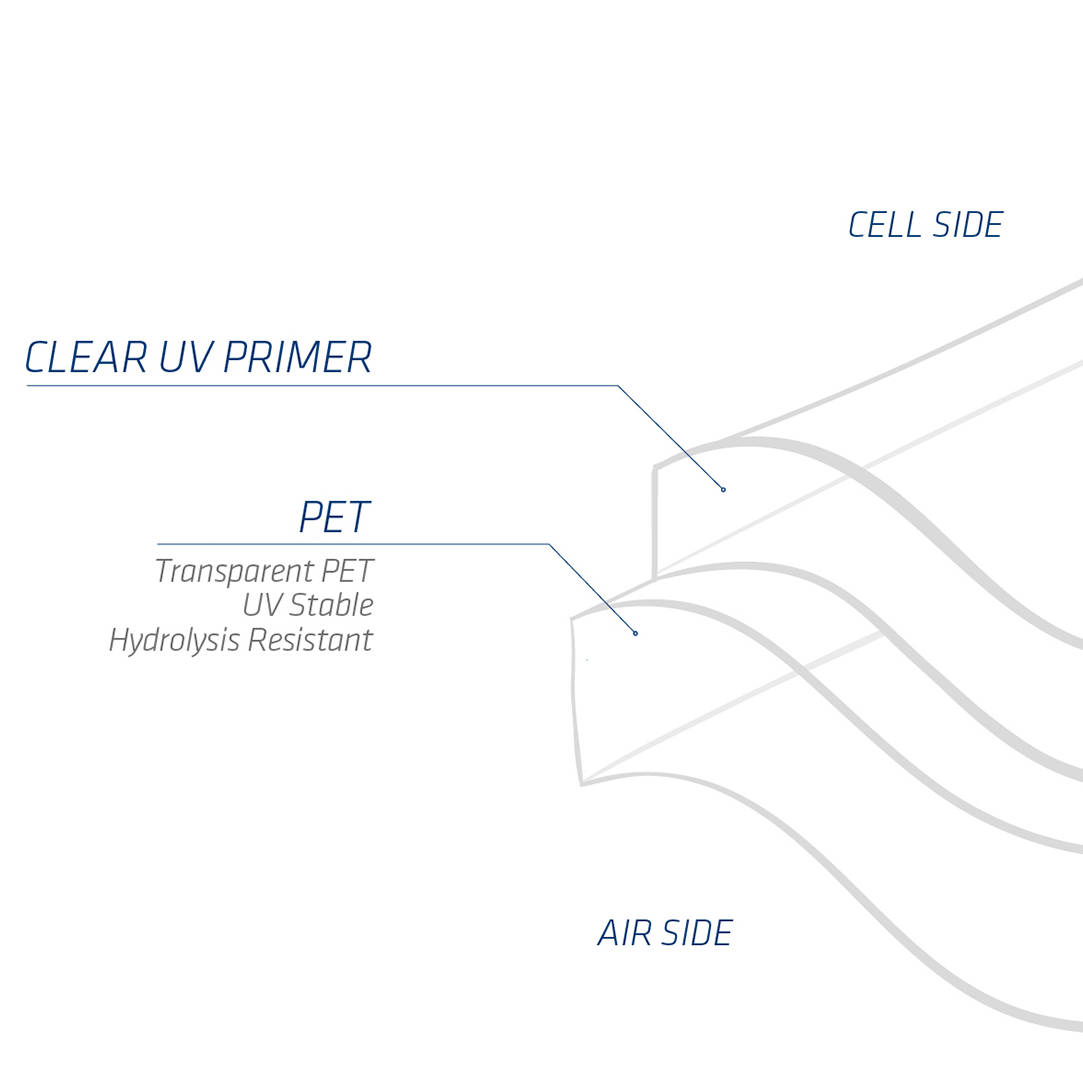

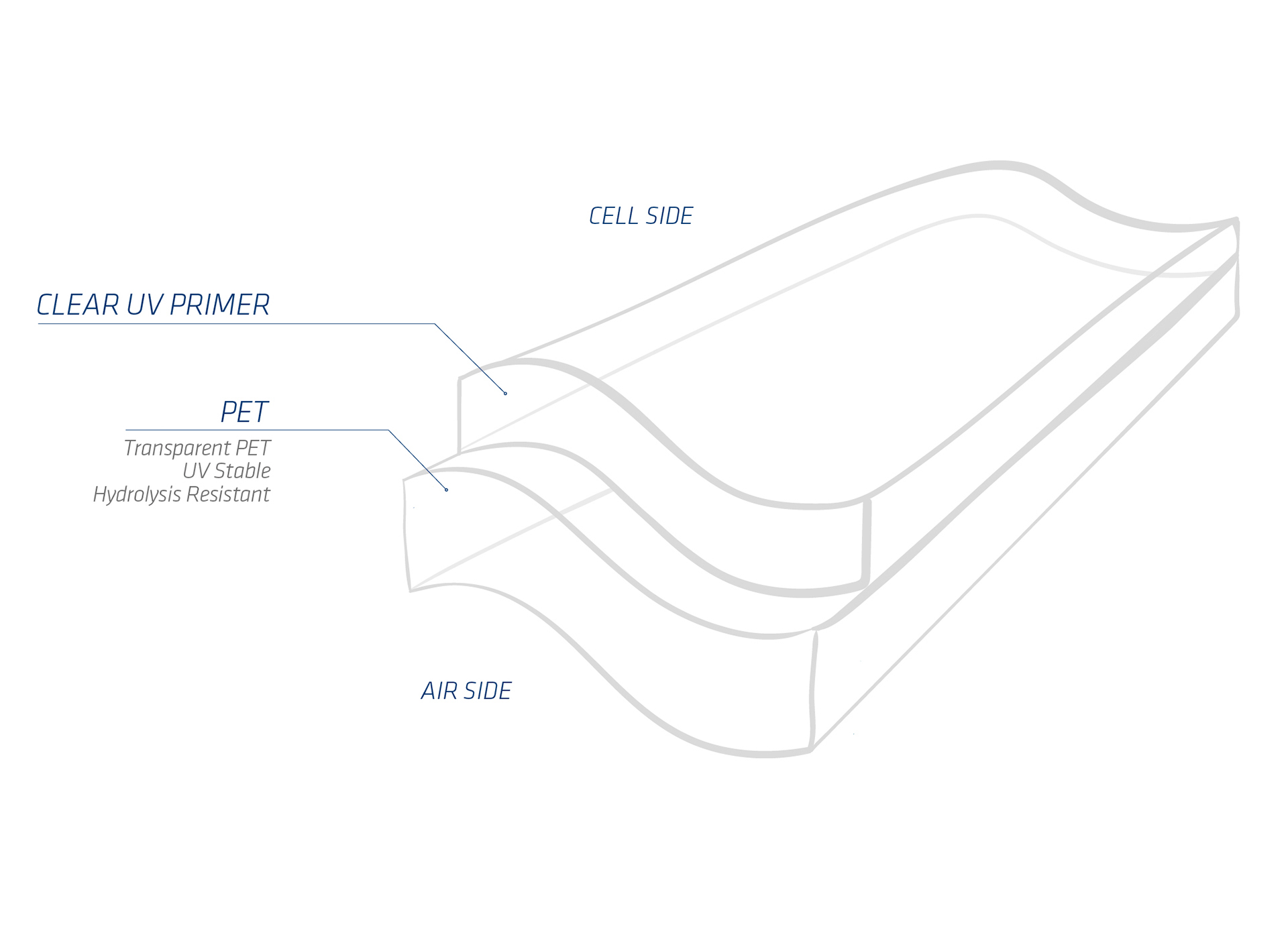

PRODUCT NAME STRUCTURE: AIR SIDE /CELL SIDE THICKNESS IN MICRON Main Features
Clr PYE MONO CX Pet coex/Primer UV 175/100 Totally transparent

The polyester film inside dyMat® PYE MONO CX backsheets can be fully recycled and can be supplied with the polyester component(s) made of recycled PET (rPET).

FEATURES
HIGH MECHANICAL RESISTANCE
UV STABLE
HYDROLYSIS RESISTANT
ENGINEERED ADHESIVE
HIGHER OUTPUT
EXTENDED LIFE TIME UP TO 30 YEARS

DYMAT PYE CLEAR
  • dyMat® Clr PYE MONO CX
OUTPUT INCREASING OPTIONS:
dyMat® Selective:

Optional white grid incorporated in the backsheet that turns the space in between the cells and the borders into highly reflective area for significant output improvement. The grid layout is defined according to customer's cell shape and size.

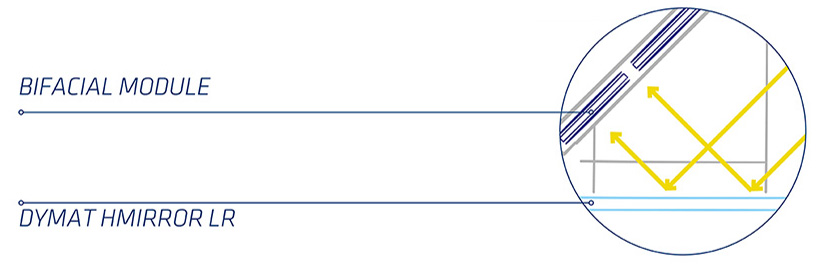

dyMat® HMirror LR:

Optional reflective laminate that can be used for retro-fitting of Bifacial PV installations to increase the albedo value of ground reflectivity and therefore the final module output.

Notes and certifications

Other thicknesses on request
Primer colours available: W (white), BK (black).
Cut sheets (sizes, drills etc.) according to customer’s specifications
Shelf life: 2 years
All values stated are to be considered as typical values.
Coveme polyester film is 100% recyclable
dyMat® is a Coveme registered trademark
dyMat® PYE MONO CX products are UL registered and TÜV RHEINLAND and TÜV SUD certified.
