DYMAT® PYE MONO CBK HR
Black high reflectivity
dyMat® PYE MONO CBK HR is a mono-layer PET based laminate with an high reflectivity black coating for 1000 VDC installations.
The high reflectivity feature was studied and developed by Coveme in order to balance the intrinsic light absorption of black colour. This is obtained through an innovative black coating on the backsheet's cell side providing a reflectance of >55%.
Together with a high bonding capacity to encapsulate, excellent protection from atmospheric agents and a long term resistance to hydrolysis dyMat ® Black High Reflectivity is a highly performing and aesthetically appealing solution for pv module producers and end customers alike. The BkHR coating can be applied also to other dyMat® backsheet compositions.

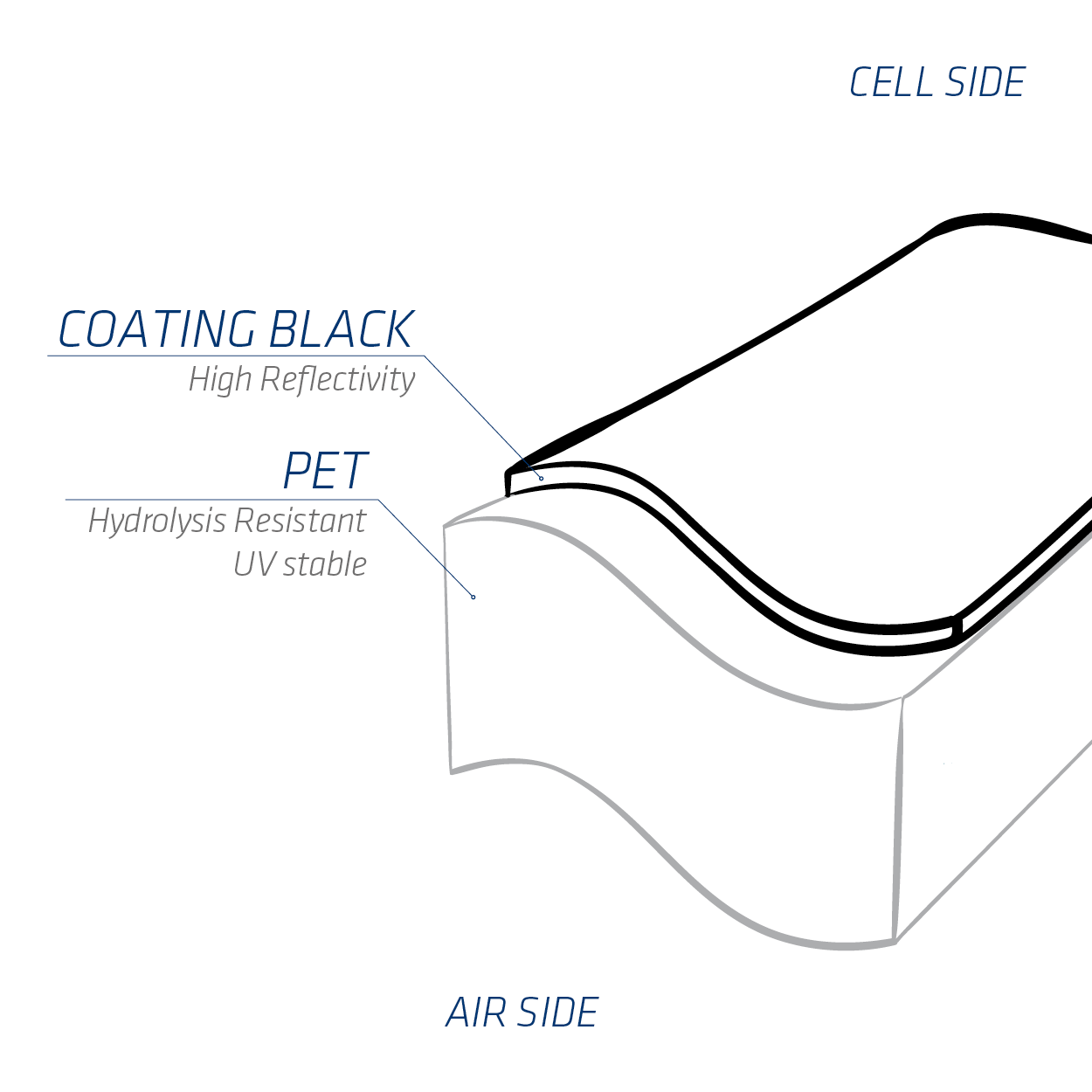

| PRODUCT NAME | STRUCTURE: AIR SIDE /CELL SIDE | THICKNESS IN MICRON | Main Features |
|---|---|---|---|
| PYE MONO CBK HR | PET/ Coating | 150/5 | Mono layer, black coating |
The polyester film inside dyMat® PYE MONO CBK HR backsheets can be fully recycled and can be supplied with the polyester component(s) made of recycled PET (rPET).
ADDITIONAL UPGRADES
For each backsheets additional treatments are available to enhance the pv module performance
| TYPE OF UPGRADE | UPGRADE CODE |
|---|---|
| Extra UV protection on cell side | LO |
| High humidity barrier | LD |
| High humidity barrier + UV protection | LDO |
| Double side black availability | DB |
Notes and certifications
Other thicknesses on request
Primer colours available: W (white), BK (black).
Cut sheets (sizes, drills etc.) according to customer’s specifications
Shelf life: 2 years
All values stated are to be considered as typical values.
Coveme polyester film is 100% recyclable
dyMat® is a Coveme registered trademark
dyMat® PYE MONO CBK HR product is UL registered and TÜV SUD certified
