DYMAT® TSL
Tedlar® based

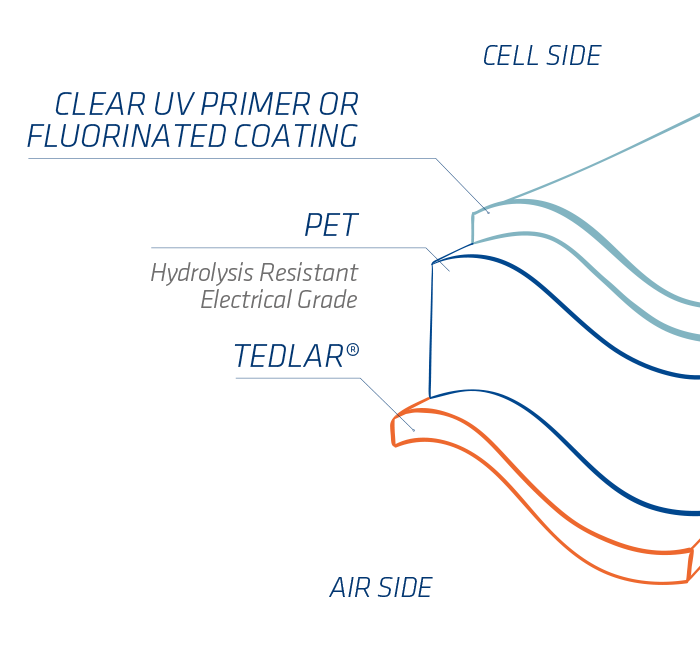

Coveme’s Tedlar® based backsheet for 1500V features a PVF layer of 25μm thickness combined with two options of inner PET thickness, 285μm or 350μm. As for the excellent Tedlar® weatherability properties, Coveme dyMat® TsL series exhibits outstanding resistance to UV irradiation. Fluorinated coating on cell side available.

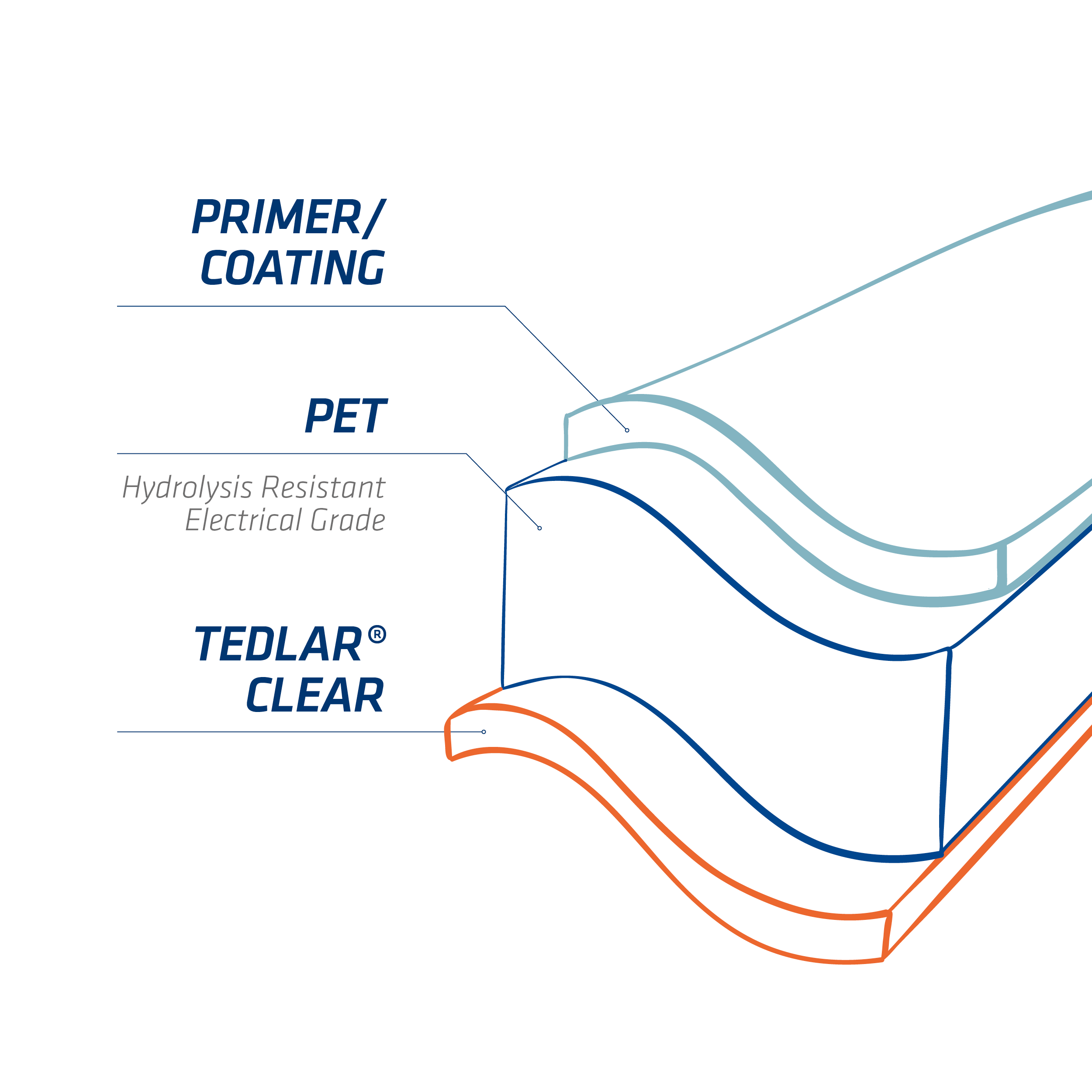

| PRODUCT NAME | STRUCTURE: AIR SIDE /CELL SIDE | THICKNESS IN MICRON | Main Features |
|---|---|---|---|
| TsL 50/285 | Tedlar®/Pet/ Primer or fluorinated coating | 25/285/50 | Standard product |
| TsL 50/350 | Tedlar®/Pet/Primer or fluorinated coating | 25/350/50 | Extra thick |
| TsO 60 | Tedlar®/Pet/PO | 25/250/60 | Standard product, poliolefin layer |
The polyester film inside dyMat® TsL backsheets can be fully recycled and can be supplied with the polyester component(s) made of recycled PET (rPET).
ADDITIONAL UPGRADES
For each backsheets additional treatments are available to enhance the pv module performance
| TYPE OF UPGRADE | UPGRADE CODE |
|---|---|
| Extra UV protection on cell side | LO |
| High humidity barrier | LD |
| High humidity barrier + UV protection | LDO |
| Super high reflectivity | SHR |
| Black on cell side | LBK |
| Black high reflectivity | BKHR |
Notes and certifications

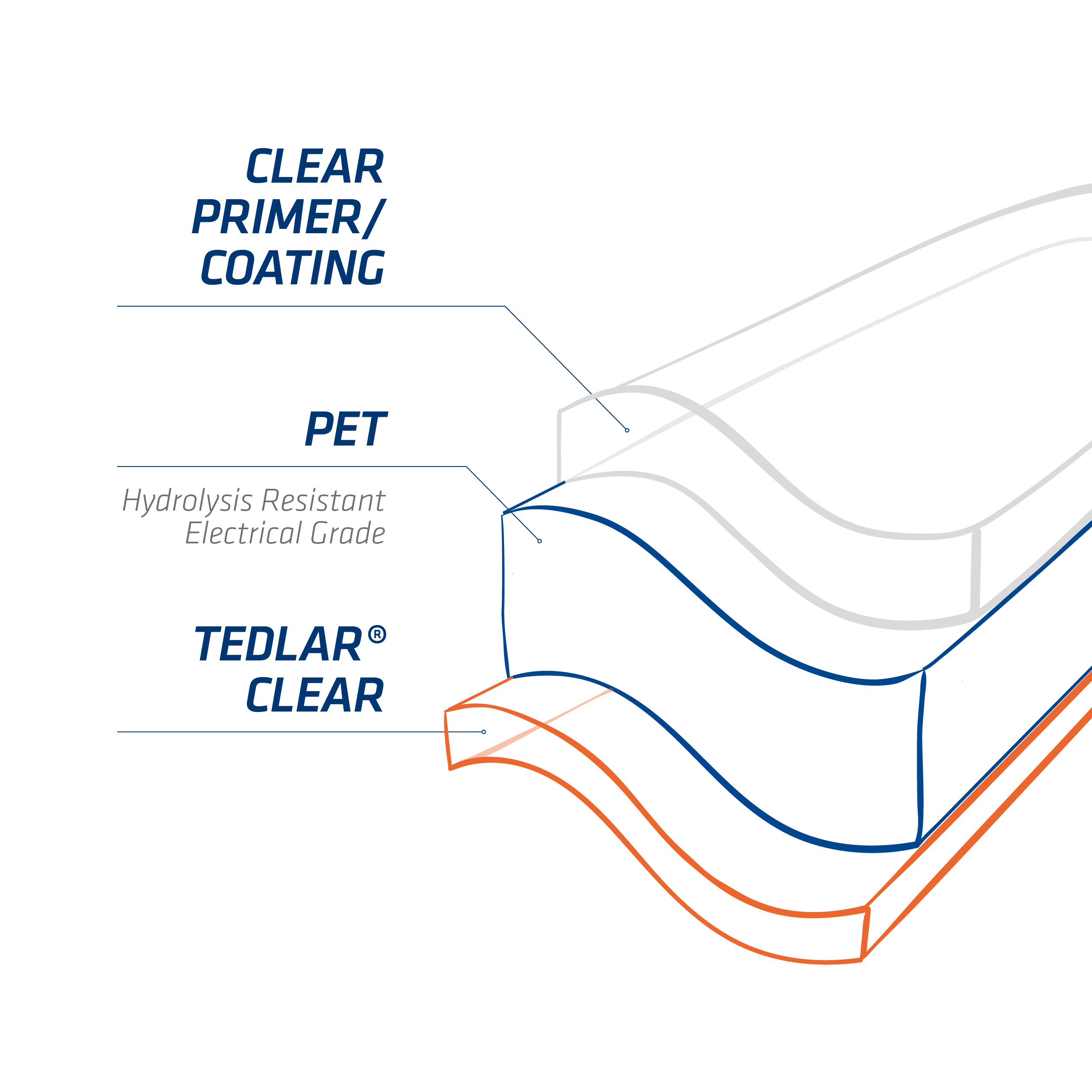

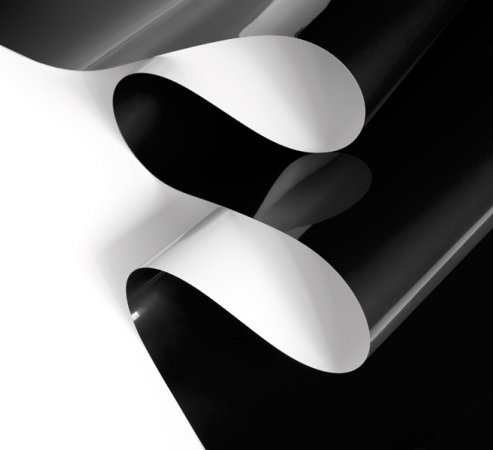

Tedlar® and primer are available in white, black or transparent colour
Cut sheets (sizes, drills etc.) according to customer’s specification
Shelf life: 2 years
All values stated are to be considered as typical values.
Coveme polyester film is 100% recyclable.
dyMat® TsL is a Coveme registered trademark.
Tedlar® is a DuPont registered trademark.
dyMat® products are UL registered and TÜV RHEINLAND and TÜV SUD certified
