DyVolt

Polyester film and paper based flexible laminates

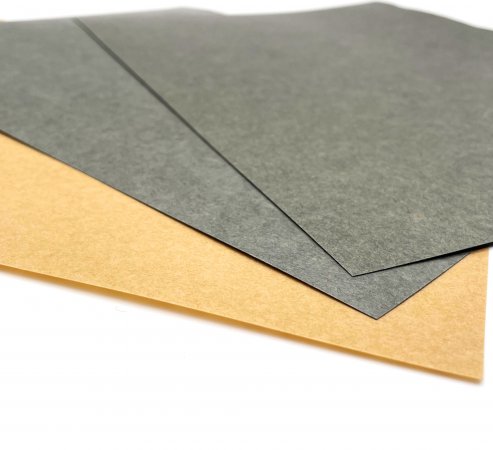

Coveme DyVolt insulation products are created by coupling a polyester film with one or two layers of high quality electrical grade paper. Coveme DyVolt laminates are made both with high and low density papers.

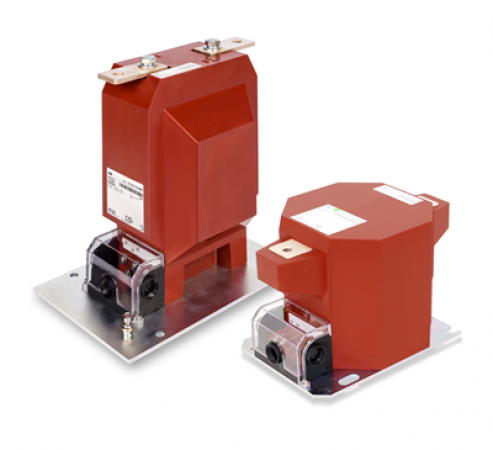

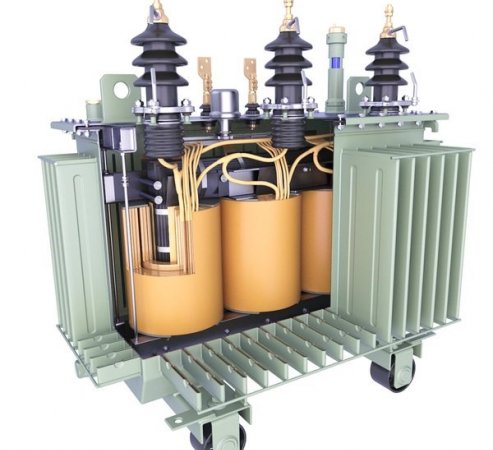

DyVolt PD and PS are produced with high density paper in standard thicknesses. These laminates are particularly suitable when high mechanical performance is required. DyVolt HD is produced with a special low thickness high density paper. DyVolt PD, PD and HD laminates are optimal for electric insulation of motors, transformers, coils or other electrical equipment.

DyVolt LS is produced with a low density kraft paper. It is particularly suitable for applications where a high permeability and saturability are required (as in impregnation with oils, resins and varnishes). It is optimal for wire wrapping and as interlay insulation in transformers.

Coveme insulating materials are UL Underwriters Laboratories certified and recognized by all major certification bodies worldwide.
Moreover the IATF certifies Coveme as qualified supplier specifically for the automotive industry.

IATF certified company
UL
PRODUCT NAME STRUCTURE THERMAL CLASS THICKNESS IN MICRON
DyVolt LS/PS High density paper or Kraft paper/Pet Film B: 130°C 130-550
DyVolt PD/HD High density paper or Kraft paper/Pet Film/ High density paper or Kraft paper B:130°C 130-550

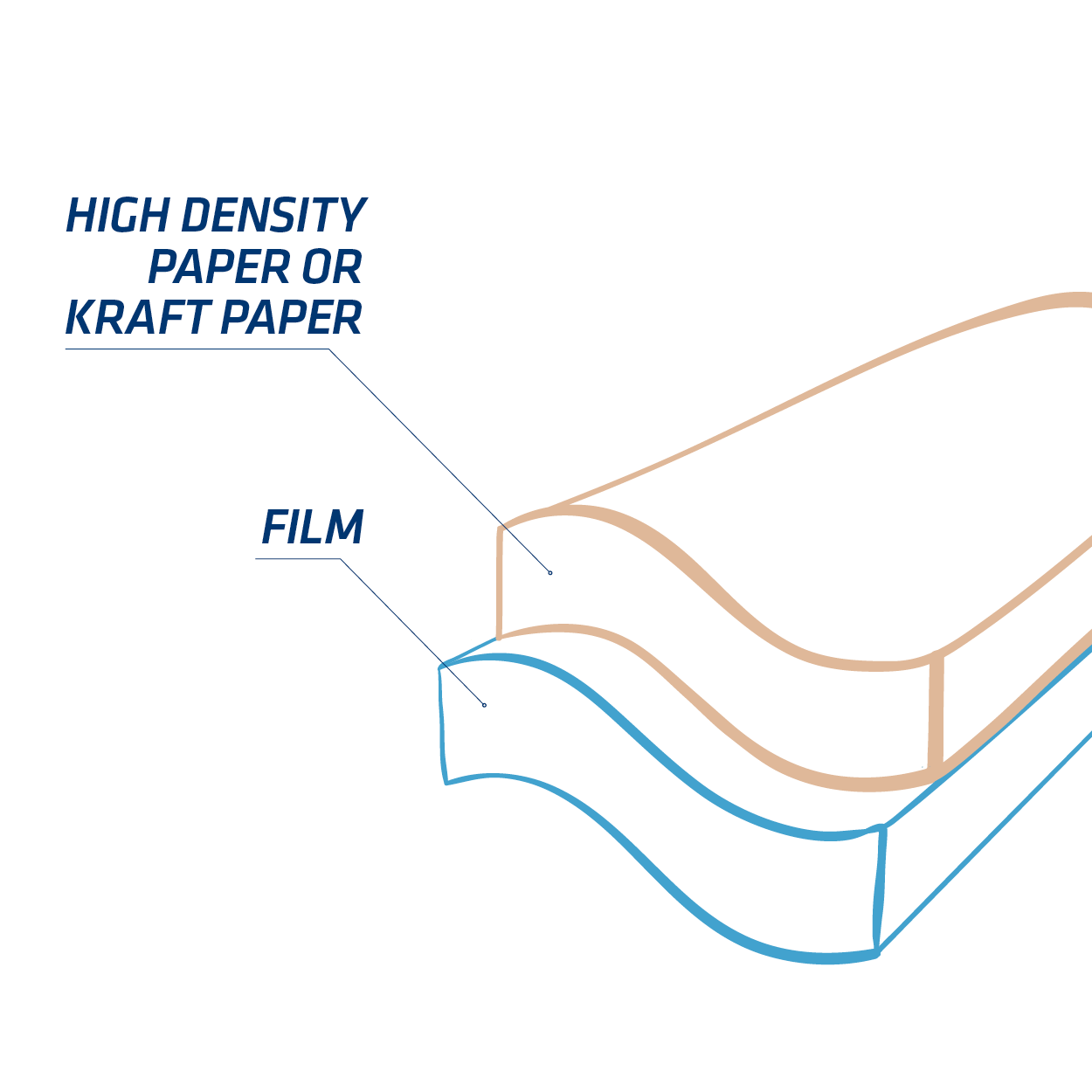

DyVolt® LS/PS
  • DyVolt LS/PS

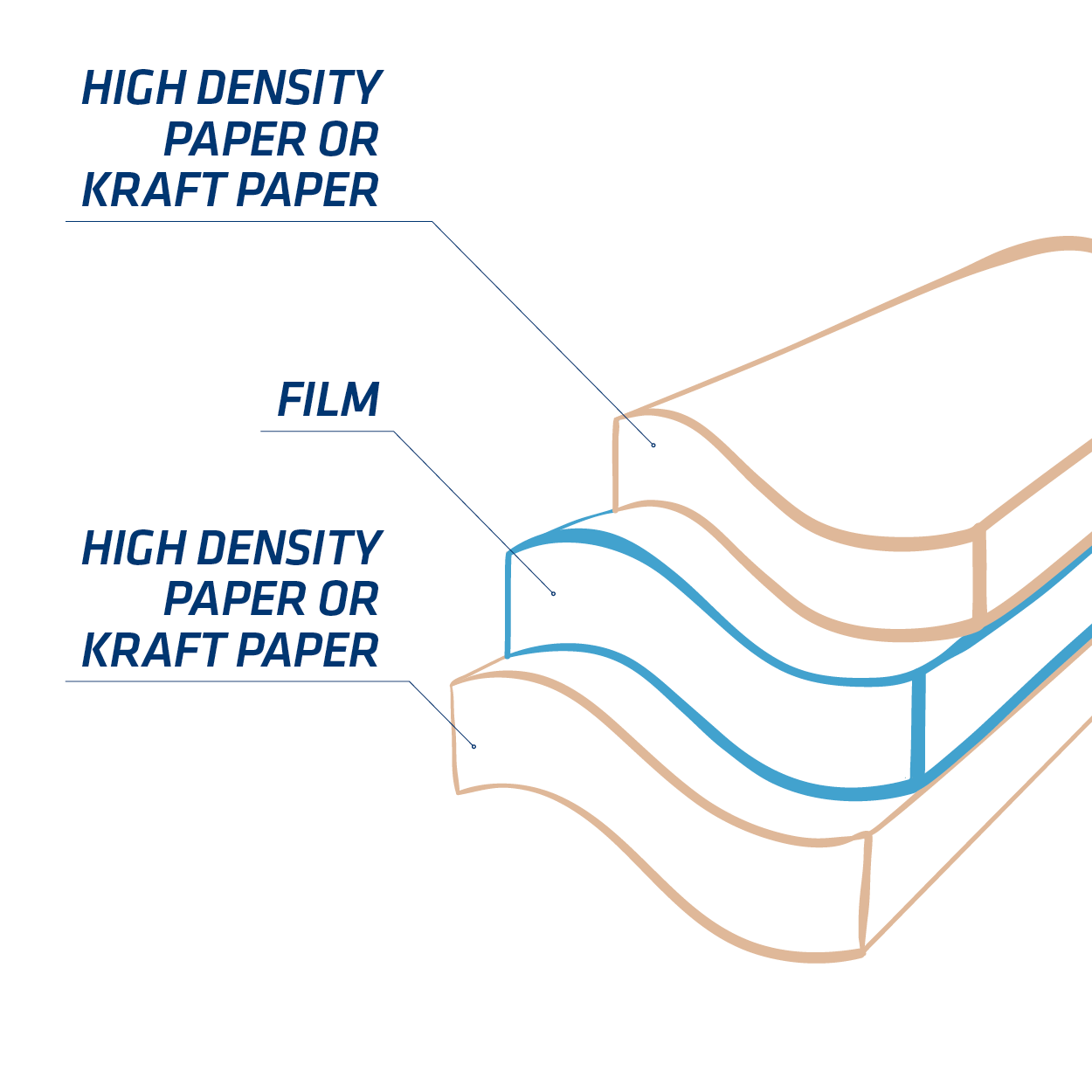

DyVolt® PD/HD
  • DyVolt PD/HD

Notes and certifications

Available Widths 6-900mm
Thermal Classes B
Available Thickness 130-550μm
DyVolt is UL and IATF certified
DyVolt is Coveme's registered trademark
