DyTerm® NMN

Nomex® with polyester film laminates (NMN)

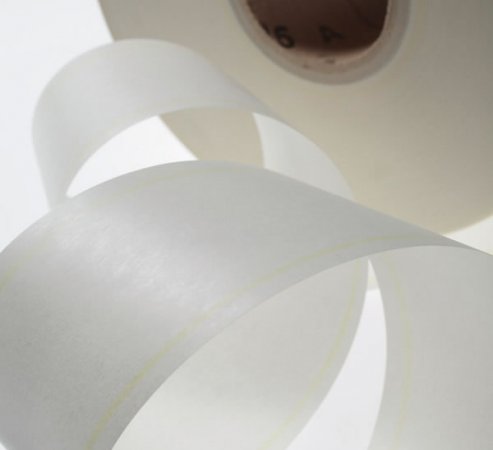

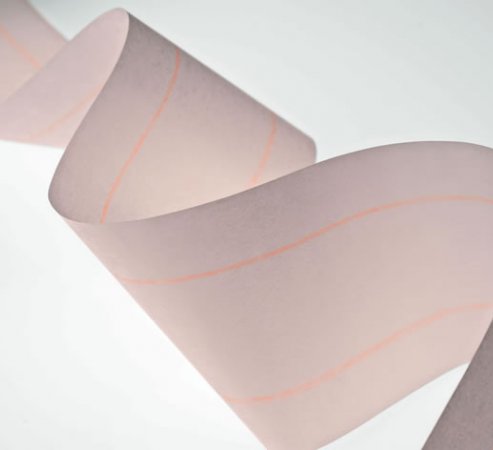

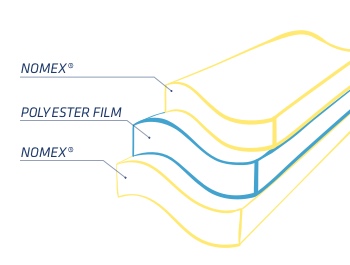

Coveme DyTerm® NMN insulation products are created by coupling Nomex® aramid paper with polyester films as 3-plies (NMN), offered in various thicknesses of Nomex® and polyester film.

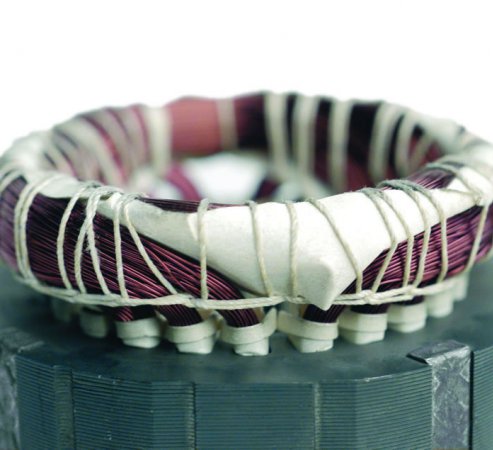

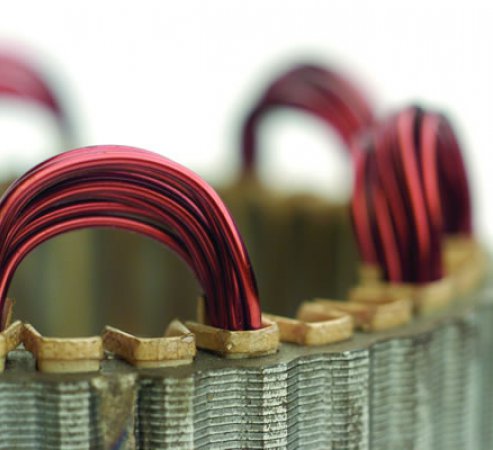

Nomex® layers stick firmly to the plastic films by appropri­ate adhesives. DyTerm® NMN laminates (types N1D, N2D, N3D) are highly performing solution for the insulation of motors and other electric rotating machines, transformers and wrapped conductors with working temperatures up to class H 180°C. The presence of films enhances the mechanical, physical and dielectric properties of the laminate. In rotating machines, DyTerm® NMN is used as slot closure and insulation, as well as to separate phases on the heads of the windings. In transformers DyTerm® NMN is used as interlayer insulating material.

Coveme insulating materials are UL Underwriters Laboratories certified and recognized by all major certification bodies worldwide.
Moreover the IATF certifies Coveme as qualified supplier specifically for the automotive industry.

IATF certified company
UL
DuPont Nomex distributor
DuPont Nomex qualified laminator
PRODUCT NAME STRUCTURE THERMAL CLASS THICKNESS IN MICRON
DyTerm® N1D, N2D, N3D (NMN) Nomex®/Pet/Nomex® H:180°C 50-1400
  • DyTerm® N1D N2D N3D (NMN)

Notes and certifications

Available Widths 4-1830mm
Thermal Classes H
Available Thickness 50-1400μm
UL and IATF certified
DyTerm® is Coveme's registered trademark
Nomex® is a DuPont registered trademark
