DyTerm® K Blue

DyBond® Blue and Kapton film laminates

DyTerm® K Blue is a range of multi-layer flexible material that can be used up to 200°C thanks to high temperature capabilities of polyimide film combined with the mica containing Nomex product. The product is designed to address the increasing need for partial discharge resistance of inverter -driven motor insulation, and stiffness to support processability along with the growing trend toward thinner secondary insulation materials.

DyTerm® K Blue made by Coveme, laminating on both sides of a polyimide film a mica containing Nomex ® product converted through a patented (DuPont and Coveme) process which confers it great mechanical stability and compactness in addition to the native Partial Discharges Resistance.
The Coveme process improves the properties of the mica containing Nomex® products family by making the material process friendly in regards to handling, fabrication and insertion.

Third-party laboratory testing confirms that DyTerm®K Blue show marked PDIV and Voltage Endurance brought by the mica containing Nomex ® products layers present in the structure.
DyTerm®K Blue laminates combine excellent characteristics, such as voltage endurance, high dielectric strength, high temperature resistance, excellent mechanical properties and compatibility with high productivity processes, effectively extending the opportunities for use of mica containing Nomex® products.

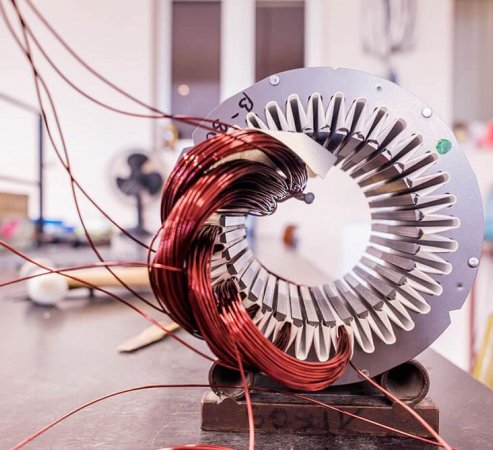

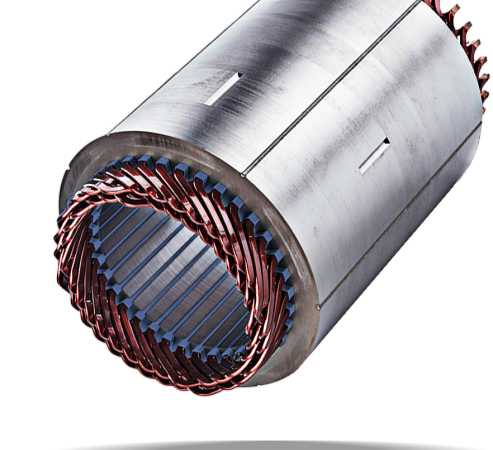

DyTerm® K Blue is used in slot insulation and closure in inverter-fed rotating machines, as well as to separate phases on the heads of the windings. In transformers and electrical static equipment, DyTerm® K Blue can be used as interlayer insulating material.

Moreover the IATF certifies Coveme as qualified supplier specifically for the automotive industry.

IATF certified company
DuPont Nomex distributor
DuPont Nomex qualified laminator
PRODUCT NAME STRUCTURE THERMAL CLASS THICKENESS IN MICRON

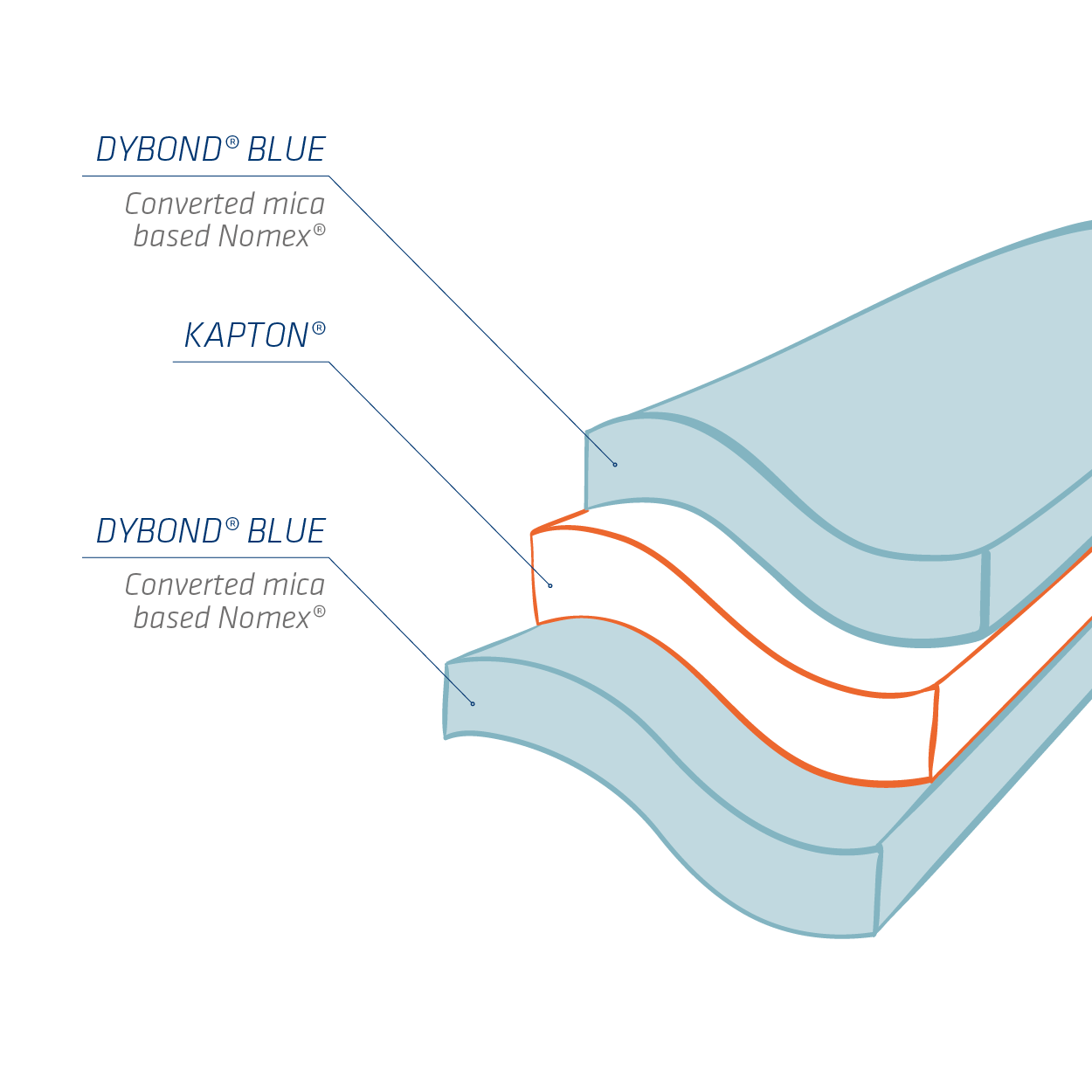

DyTerm® K Blue DyBond® Blue/Kapton®/DyBond® Blue Up to 200°C 140-250
  • DyTerm® Blue

Notes and certifications

Available Widths 4-1830mm
Thermal Classes up to 200°C
Available Thickness 140-250μm
IATF certified
DyTerm K® is Coveme's registered trademark
Nomex® is DuPont’s registered trademark
